Description
- This device is applied with South African standard plugs:
- 5,000W Rated Power (10,000W Surge)
- 3,072Wh~18,432Wh Expandable Capacity = Up to 6 x Bluetti B300S battery modules
- LiFePO₄ Battery With 3,500+ Life Cycles to 80% = one of the highest cycle rates for moblie power stations on the planet.
- AC500 only works with THE BLUETTI B300S battery modules
- Smart APP Control (WiFi & Bluetooth Connection).
- Remote Control and monitor your unit from your mobile Android /Apple phone from your tent / chalet / camper ect via Wifi or Bluetooth .
- Download Bluetti App from net / Apple I store / google play store.
- 6 Ways to Recharge (AC/Solar/Car/Generator/Lead battery/Dual charging(Dual AC/AC+Solar)).
- 16 Versatile Outlets for 99% Devices.
- Tie to Home Grid for 24/7 UPS
- 4-Year Warranty for AC500 & B300S, 1-year for accessories.

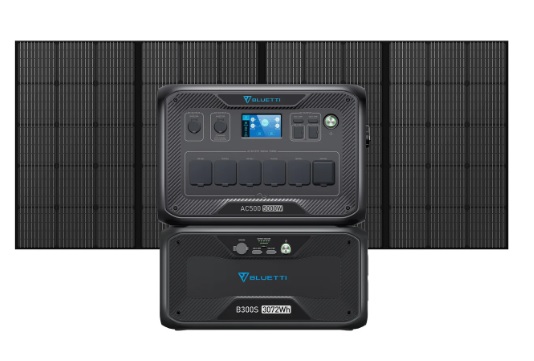

- AC500 power station .
- 2 X B300S expansion batteries .
- 1 x PV350W Bluetti solar panel .
- Battery expansion cable (P150D)
- SOLAR CHARGE CABLE (MC4-XT90)
- User manual
- warranty card
- certificate card .
Download AC500 B300S user manual here : 17.0303.0546-01_AC500_2023.03.10
Technical specifications :
AC500 Power Station :
Capacity:
Works with B300s or B300, starts at 3,072kWh
OUTPUT
AC Outlets:
5 x 230V/16A
1 x 230V/21A
5,000W In Total
Inverter Type:
Pure Sine Wave
USB-C Port:
2 x 100W Max.
USB-A Port:
2 x 5V/3A USB-A
2 x 18W USB-A
DC Outlets:
1 x 12V/30A (RV Outlet)
1 x 24V (Car Outlet)
*All Regulated.
Wireless Charging Pad:
2 x 15W Max. (For Each)
INPUT
AC Charging Cable Input:
4,500W Max. (W/ 1*B300S), 5,000W Max.
(W/ 2 or more B300S)
Solar Input:
3,000W Max., VOC 12-150VDC, 15A
Car Input:
12/24V from Vehicle Cigarette Lighter Port
Max Input:
6,000W (W/ 1*B300S), 8,000W (W/ 2 or more B300S) with AC and Solar Input Simultaneously
GENERAL
App Control:
Yes, Wifi&Bluetooth
Scalability:
Expandable W/Up to 6 x B300S Or 4×B300
Simultaneous Recharge & Discharge:
Yes
Dimensions (LxWxD):
20.5 x 12.8 x 14.1in ( 52 x 32.5 x 35.8cm)
Operating Temperature:
-4-104℉ (-20-40℃)
Storage Temperature:
-4-104℉ (-20-40℃)
Certification:
UL2743, UKCA, TELEC, RCM, FCC ID, CE
NOTE
32A is the specification of the socket, so the current will not be reached under the rated output of 5000W. But a larger socket margin is required to ensure stable output under high-power surge power.
B300S BATTERY SPECIFICATIONS :
BATTERY INFO
Capacity:
3,072Wh (51.2V, 60Ah)
Cell Chemistry:
LiFePO₄ (Lithium Iron Phosphate)
Life Cycles:
3,500+ Cycles to 80% Original Capacity
Shelf-life:
Recharge to 80% Every 3-6 Months
Management System:
MPPT Charge Controller, BMS, etc.
OUTPUT
USB-C Port:
1 x 100W Max.
DC Outlets:
1 x 12V (Car Outlet)
*All regulated.
INPUT
Solar Input:
500W Max., VOC 12-60VDC, 10A
Car Input:
12/24V from Cigarette Lighter Port
Maximum Input:
1,000W, with D050S DC Charging Enhancer
GENERAL
Simultaneous Recharge & Discharge:
Yes
Dimensions (LxWxD):
20.5 x 12.5 x 10.5in (52 x 32 x 26.6cm)
Operating Temperature:
-4℉-104℉ (-20℃-40℃)
Storage Temperature:
-4℉-104℉ (-20℃-40℃)
Certification:
UL2743, UKCA, RCM, PSE, FCC, CE
Solar Panel specification :
POWER
Lamination:
ETFE (Ethylene tetrafluoroethylene)
Cell Type:
Monocrystalline Silicon
Cell Efficiency:
Up to 23.4%
Voltage at Max Power(Vmp):
37.5V
Current at Max Power(Imp):
9.2A
Open Circuit Voltage(OCV):
46.5V
Short Circuit Current(Isc):
10.8A
GENERAL
Connector:
Standard MC4 Connector
Dimensions (Unfolded):
35.6 × 94.4inch (90.5*240cm)
Dimension (folded):
35.6 × 24.1 ×2.5in (90.5*61.3*6.5cm)
Operating Temperature:
14-149℉ (-10-65℃)
Best Working Temperature:
77℉ (25℃)
Cable Length:
118in/ (3m)
Certifications:
FCC, CE, ROHS
