Description
Features and specifications :
- Output power = 1000w .
- 1 x High quality Vertical Access Wind turbine with 1 x advanced lithium charge controller unit employing built in electronic circuit wind speed and wind direction breaking technology .
Please note :
Approx delivery time on these product are approx 7-14 days (FEDEX EXPRESS) with tracking .
Suggested mounting options .
A . Mounted against a wall of a free standing structure on your property I.E : Garage that is not part of the home using a 1m stainless steel mounting pole . Use 10mm stainless steel threaded bar , nuts and chemical anchors to secure mount pole to structure .
or
B : Mounted against a free standing ground cemented 5m wooden tar pole ( wooden pole diam+- 150 mm ) cemented into the ground at a depth of approx 1m on your property at a location that is exposed to the prevailing seasonal wind directions .
Note : Obtain the following items from your local D.I.Y/electrical/store for installation of your turbine :
- 1m stainless steel mounting pole . ( drill 2 holes near base of pole for securing stainless steel pole to structure) .
- 1 x 32A DC circuit breaker.
- 2.5mm Cabtyre 3 core turbine power cable .
- Male and female insulated spade connectors for turbine Cabtyre power cable .
- steel ring connectors for controller power cable to lithium battery connection.
- 1 x copper earth spike .
- 15m 10mm turbine earth cable. Use 10mm stranded single core double Halogen solar power cable
- Chemical anchors for the 4 x M10 10mm stainless threaded bar . (buy enough for 2 x approx 15-20cm lengths )
- 10mm M10 stainless steel threaded bar and securing nuts .
Recommended compatible lithium batteries we sell for this kit : Our Pylontech US5000 lithium batteries . ( Listed under our batteries section of our online store for purchase ) .
Note : If installing on the wall of a fixed structure – i.e – free standing garage ; use 20mm round PVC pipe with stainless steel omega clamps to house your power cable – these can also be obtained from Hardware vendors .
If doing a ground install , bury your PVC pipe approx 25-30mm deep .
|
Item
|
SX5
|
||
|
Rated power(W)
|
1000W
|
||
|
Max power(W)
|
1100W
|
||
|
Rated voltage(AC)
|
48V
|
||
|
Started wind speed (m/s)
|
2.0m/s
|
||
|
Cut-in wind speed (m/s)
|
3.0m/s
|
||
|
Rated Wind speed (m/s)
|
13m/s
|
||
|
Safe wind speed (m/s)
|
45m/s
|
||
|
Rotor Diameter of Blades(m)
|
0.62m
|
||
|
Blades height(m)
|
0.9m
|
||
|
Blades colors
|
white/customized
|
||
|
Blades quantity
|
3
|
||
|
Blade material
|
Glass Fiber
|
||
|
With inner blades
|
YES
|
||
|

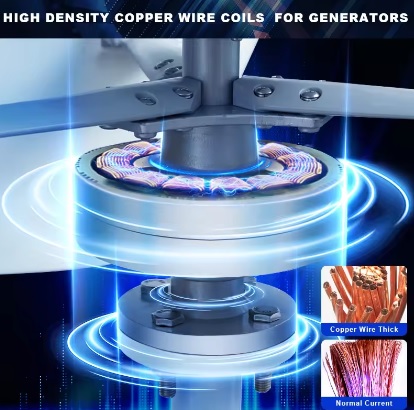

Generator
|
Three phase permanent magnet generator
|
||
|
Control System
|
Electromagnet
|
||
|
Mount Height(m)
|
2~12m
|
||
|
Generator protection grade
|
IP54
|
||
|
Work environment temperature
|
-25~+45ºC
|
||
|
Work environment humidity
|
≤90%
|
||
|
Altitude
|
≤4500m
|
||
|
Overspeed protection
|
Electromagnetic brake
|
||
|
Overload protection
|
Electromagnetic brake and the unloading unit
|
||
Wind Charge controller specifications :
Model : WWS30-220 .
Type : PWM .
Certificate : CE .
Warranty : 1 Year .
Rated power : 1000W .
Rated Voltage : 48V .
Efficiency : ≥95%
Rectifier mode : Uncontrolled rectifier .
Operating temperature ; -20℃~+40℃
Installation mode : Wall-mounted .
IP20
LCD Screen
Overcharge Over discharge Overload Short circuit Protection
11.5kg
Packaging and delivery
Carton/ wooden carton box
Single item
49X51X26 cm
