Description

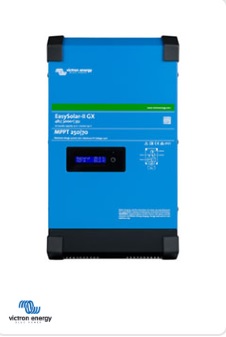

5kW 48V Inverter/Charger with an integrated 250/100 MPPT Charge Controller and built in (GX Device) which is used for correctly communicating with your lithium battery/batteries . Our compatible range of lithium batteries with BMS support we sell for this inverter : Pylontech US5000( >8000 cycles @80% D.O.D) , Rentech , Freedom Won , Freedom Won Lite , Freedom Won E-Tower , BSL , Blue Nova LiFePo4 lithium 52V 58kWh rack mounted battery and Blue Nova DU 52V 5.12kWh cabinet rack mounted lithium batteries..
DC Bus Pre-ChargingWarning ! Important: Many installers neglect this aspect. The inrush current when switching on the battery breaker onto the DC bus is huge. This can cause damage to the breaker over time. So it is a Freedom Won requirement that the DC bus is pre-charged before switching on the battery. This is achieved by switching on the AC input to the inverters – the inverters will use the AC power to pre-charge their capacitors. This will eliminate the huge inrush current. The MPPTs can also be used for pre-charging by switching on the solar panels supply to the MPPTs. download data sheet here : Datasheet-EasySolar-II -PLUS II -24V-48V-3kVA-48V-5kVA-MPPT-250-70-100-GX-EN download manual here : EasySolar-II PLUS II_GX-en user manual download warranty here : Victron Warranty Terms and Guidelines
|
Read ! Using Freedom Won batteries with your Victron Inverter :
Your Victron MultiPlus inverter must be correctly configured for operation with your Freedom Won LiTE lithium battery /batteries as follows .
Set the Low Shut-Down, Low Restart, and Low Pre-alarm voltages. The Low Pre-alarm only activates the low battery LED on the inverter and serves no other purpose in this setup. The Low Shut Down and Low Restart voltage settings are usually overridden by the commands from the LiTE but offer redundancy in instances of loss of communication and therefore should still be set correctly.
Read through the Freedom Won manual below for the rest of your setup instructions please :
-
Freedom Won LiTE Home and Business: Eight models available ranging from the smallest 5kWh model (Freedom Won LiTE Home 5/4) up to the 80kWh model (Freedom Won LiTE Business 80/64)
-
Freedom Won LiTE Commercial: Ten models available ranging from the 100kWh model (Freedom Won LiTE Commercial 100/80) up to the 700kWh model (Freedom Won LiTE Commercial 700/560).
-
Freedom Won eTower: Stackable 5kWh rack-mount battery eTower which presently includes only the e5000 model, designed specifically for enabling small economical storage solutions that can be upgraded
Technical Support and Troubleshooting for Freedom Won Lithiums :
Should any difficulties arise with the Freedom Won LiTE to Victron interface please contact support@freedomwon.co.za for assistance.
Technical Support and Troubleshooting for Pylontech Lithiums :
sales@pylontech.com.cn
