Description

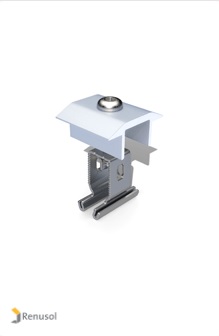

Part No: REN-420082 Mounting – Module Clips
Technical Data:
Dimensions: 35x40x60
Weight: 0.064kg
Set: complete pre-assembled set
Material: Aluminium; Corrosion resistant steel
Certification: TUV ID:48970; ETN BT120019; MCS012 IK0197
Module Types: Framed modules only
Module Thickness: Between 30.0mm and 50.0mm
Maximum Torque: 12,00 Nm
Driver: Hexagon socket 5mm
Renusol mounting equipment must not be used with mounting equipment from other suppliers. Doing so would inevitably void the warranty of the mounting system.
- Supplier Part No:
- 420082
- Weight:
- 0.062 kg
- Clip Type:
- 199
- Clip H:
- 51 mm
- Clip B1:
- 10.8 mm
- Clip Colour:
- Silver
Install manual : Renusol_420081_420082_VS__01
warranty :
