Description
Product specifications :
Product name : Iradio UV98 Plus Multi Band Radio .

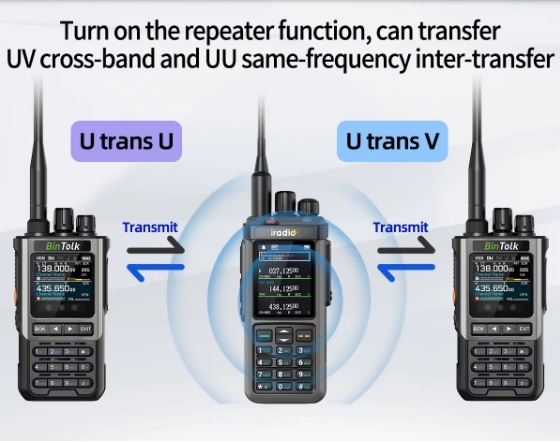

Extra features : GPS location , Cross Band Repeater , 11 NOAA weather forecast channels (available only in the United States) , Spectrum scanning function VOX function(Voice Activated Transmit) Monitoring function Emergency alarm function. Receives aviation AM signals, frequency range 108-136MHz , DTMF encoding transmission DTMF remote dizziness and remote death wake-up Type-C charging function,Base+Type-C Two charging methods.
Frequency MODES : AM/USB/LSB/ CW: (RX) , HF SSB (18-64MHZ) RX /TX , CB SSB (27 MHZ) RX/TX , VHF/UHF (136-520MHZ) RX/TX , AM , FM : (64-108 MHZ ) RX : , SW RADIO (2.3-30MHZ) RX , MW (570KHz-1710KHz) RX ,LW (173-279 KHz ) RX
CHANNEL SPACING:25 and 12 KHz
Talk range :0-5km vhf and uhf without repeater or amplifier : Talk range HF SSB mode 5km > long range without RF Amplifier.
water resistance level :IPX6
output power :10 W without amplifier .
Battery Capacity :Lithium : 2000-2500mah
Transceiver type : Digital SDR walkie talkie
operating language :English and Chinese .
storage channel: 1024 Channels – radio is programmable with cable .
Place of origin: Fujian, China
OPERATING VOLTAGE :7.4V DC

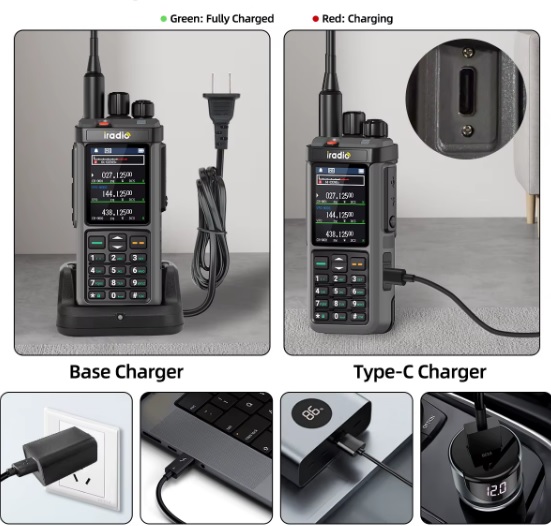

Charging : Dock type : type C /
WORKING TEMP RANGES: 20-60 DEGREES CELCIUS .
Frequency range: 18-520mhz
Dimensions : 149 x 64 x 37mm
weight: 307 g
Features:
1024 channels and three VFO channels Triple frequency standby function Cross Band Repeater Triple PTT transmission S9+field strength indicator, real-time display of field strength values One-click frequency measurement and remote sub-tone scan Customizable keyboard and side key functions. Two emission end tones and MDC end tones Manually editable device name (device name can be used as call sign, MDC transmission and decoding) Manually editable channel names in both Chinese and English
11 NOAA weather forecast channels (available only in the United States) Receives aviation AM signals, frequency range 108-136MHz Power-saving mode, gradually deepens power saving ratio over time when enabled Frequency scan and channel scan functions Spectrum scanning function VOX function(Voice Activated Transmit) Monitoring function Emergency alarm function. Editable single-tone transmission(The 1750 Hz tone can wake up the repeater.) Customize the startup logo and prompt. DTMF encoding transmission DTMF remote dizziness and remote death wake-up Type-C charging function,Base+Type-C Two charging methods.
Features: 1. Multi-band coverage including CB, SSB, HF, FM, SW, MW, and LW frequencies. 2. 2.4″ TFT large screen for clear and easy reading. 3. Tri-frequency waiting capability for enhanced functionality. 4. Digital Tone Multi-Frequency (DTMF) for secure communication. 5. Cross-band repeater function to extend communication range. 6. Type-C charging interface for easy and quick recharging.
NOTE :

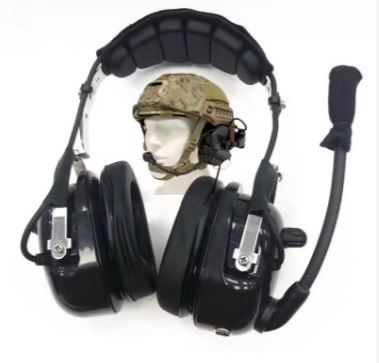

Tactical earphone muffs/mike combo unit sold separately here :click here:
\uD83D\uDC46 You can switch the frequency range according to your usage needs. The working range of the frequency band is: 18-64MHz, 64-642MHz, 840-1000MHz. These three ranges cannot work simultaneously, and an antenna compatible with this frequency range needs to be replaced before use. 18-64MHz requires replacement with an antenna compatible with this frequency range!!!! For example, the CB antenna (27MHz antenna) needs to be replaced for 27MHz, or the antenna compatible with 50MHz needs to be replaced for 50MHz!!! \uD83D\uDC46 This walkie talkie requires a dedicated Type-C interface Programming Cable provided by the manufacturer to be connected to a computer, and channel programming is performed using UV-98 PLUS frequency writing software. A regular mobile phone data cable or regular write frequency cable cannot establish a communication connection. If you cannot find the frequency writing software, please contact us~ \uD83D\uDCE2Built in APRS+GPS, one click to send and share location information, real-time monitoring of teammates’ location information. By directly transmitting and receiving positioning data through wireless U/V signals, it is widely used in outdoor sports, activity safety, rescue and other fields, as well as other occasions.
